SenseCAP Solar Node P1-Pro

The SenseCAP Solar Node P1-Pro is a solar-powered Meshtastic/MeshCore node designed for long-term outdoor deployment. It comes with everything you need to get set up right out of the box, including four 18650 batteries, a GPS module, and pre-flashed and configured with your firmware of choice.

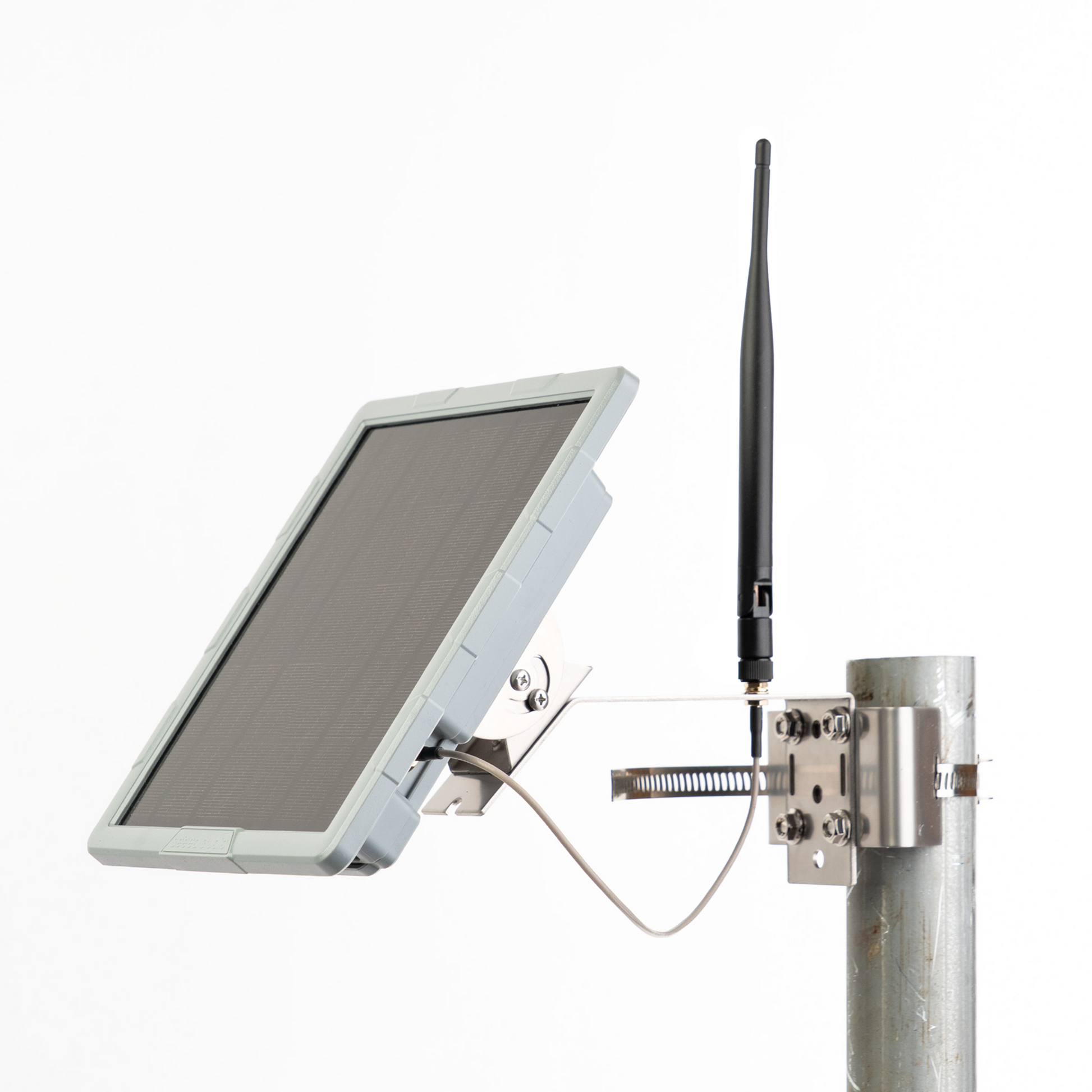

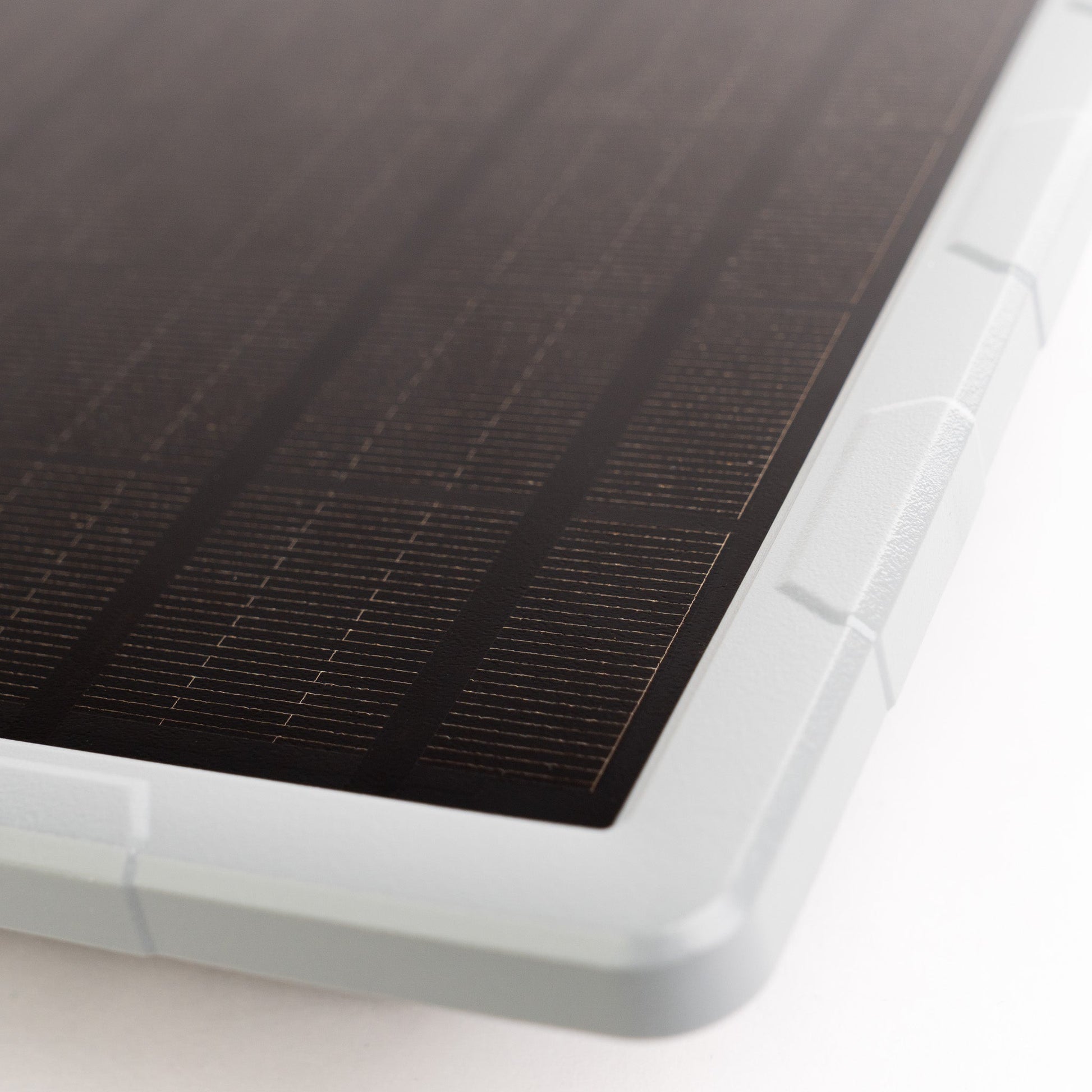

Mount it on a pole or wall to extend your mesh network's range and reliability. The integrated 5W solar panel keeps the batteries topped off, and the nRF52840-based radio draws minimal power, so this node can run indefinitely in most environments with as little as an hour of sunlight per day.

The P1-Pro supports communication ranges up to 9km in open areas and can function as either a standalone node or a repeater to relay messages across your mesh. Built-in GPS provides real-time positioning, making it a solid option for remote area tracking and outdoor operations.

A Grove expansion port lets you connect environmental sensors (temperature, humidity, air quality) for remote monitoring applications.

Atlavox ships your solar node pre-flashed with the latest firmware — no assembly, flashing, or configuring required.

Key Features

• ✅ Solar Powered — 5W integrated solar panel with four 3,350mAh 18650 batteries for 24/7 operation
• ✅ Built-in GPS — XIAO L76K module with GPS, GLONASS, and Galileo support for real-time positioning and time-keeping
• ✅ Long Range — Up to 9km in open areas
• ✅ Meshtastic/MeshCore Ready — Pre-flashed with either Meshtastic or MeshCore firmware, no setup required
• ✅ Bluetooth 5.0 — Connect to the free Meshtastic or MeshCore app on your phone for configuration and messaging, or deploy it as a standalone repeater without needing to connect to your phone

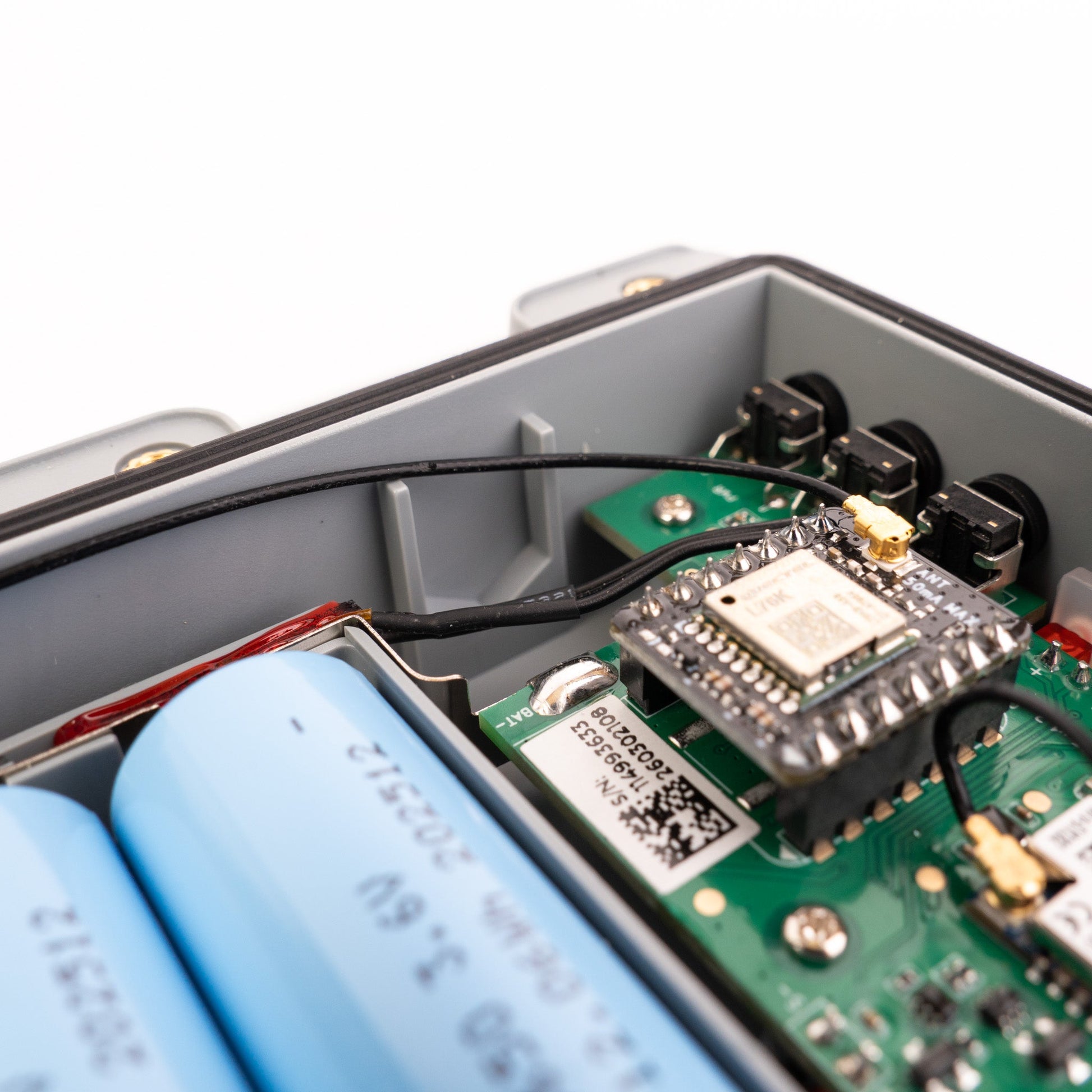

• ✅ Low Power — nRF52840 processor optimized for energy efficiency

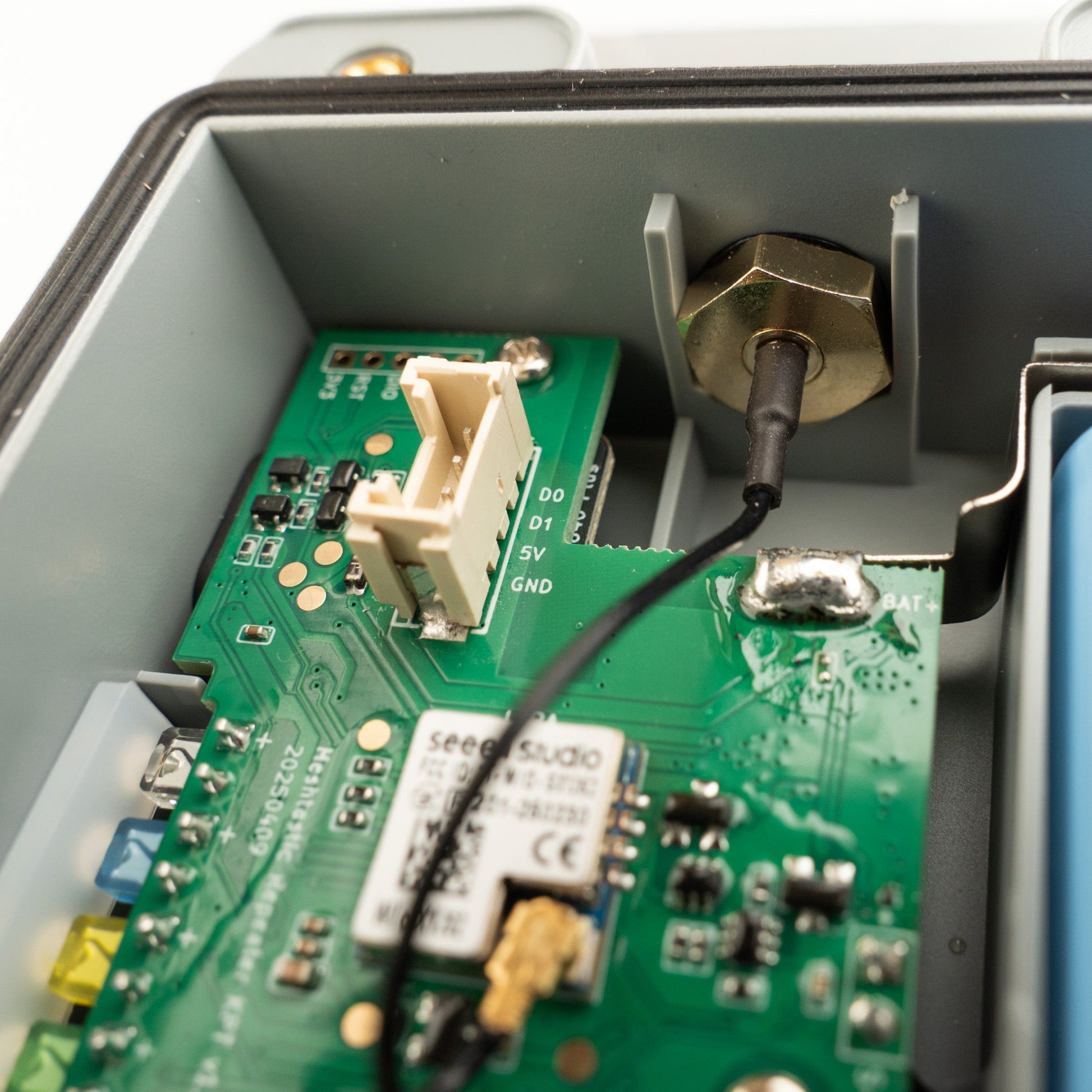

• ✅ Expandable — Grove port (I2C/GPIO) for plug-and-play sensor modules

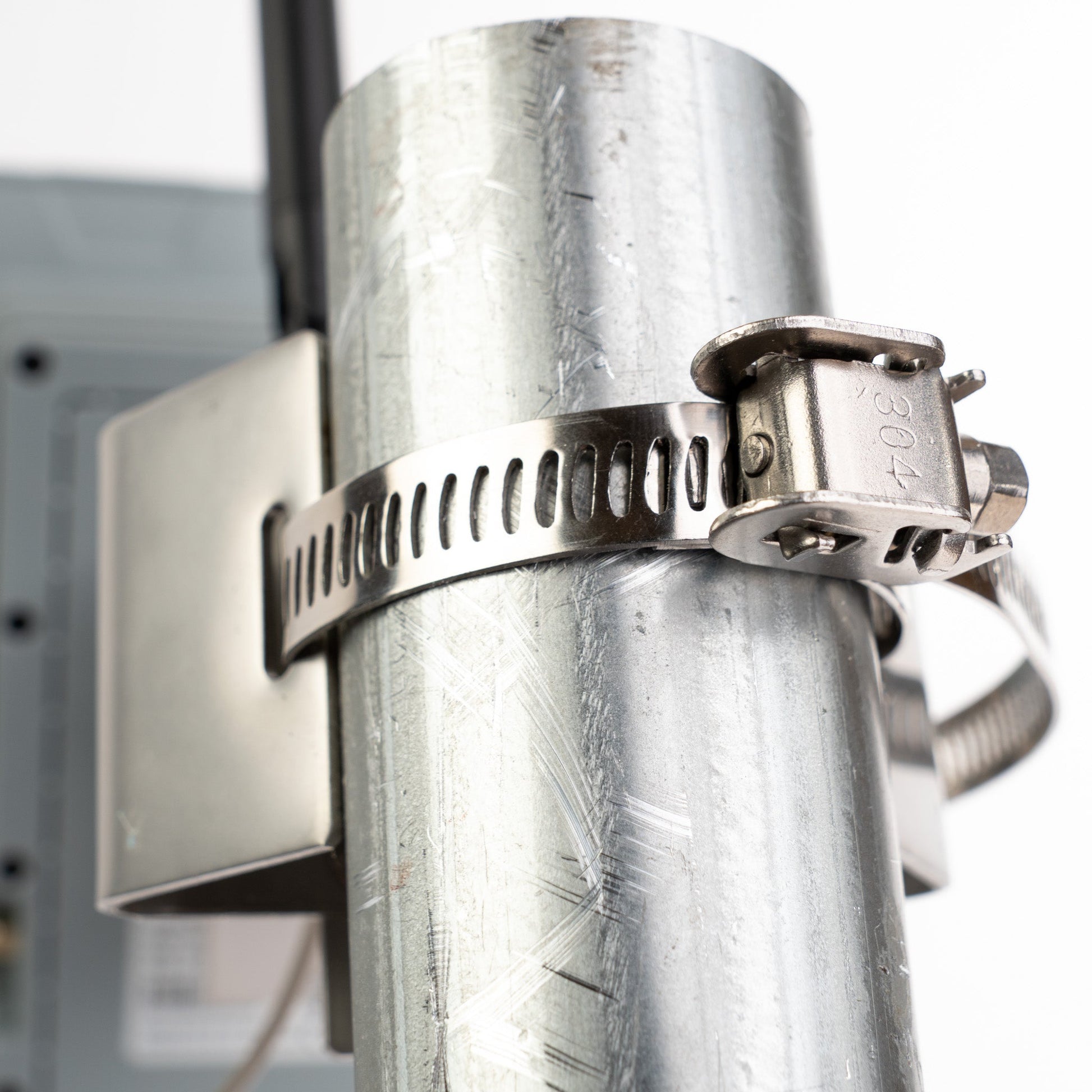

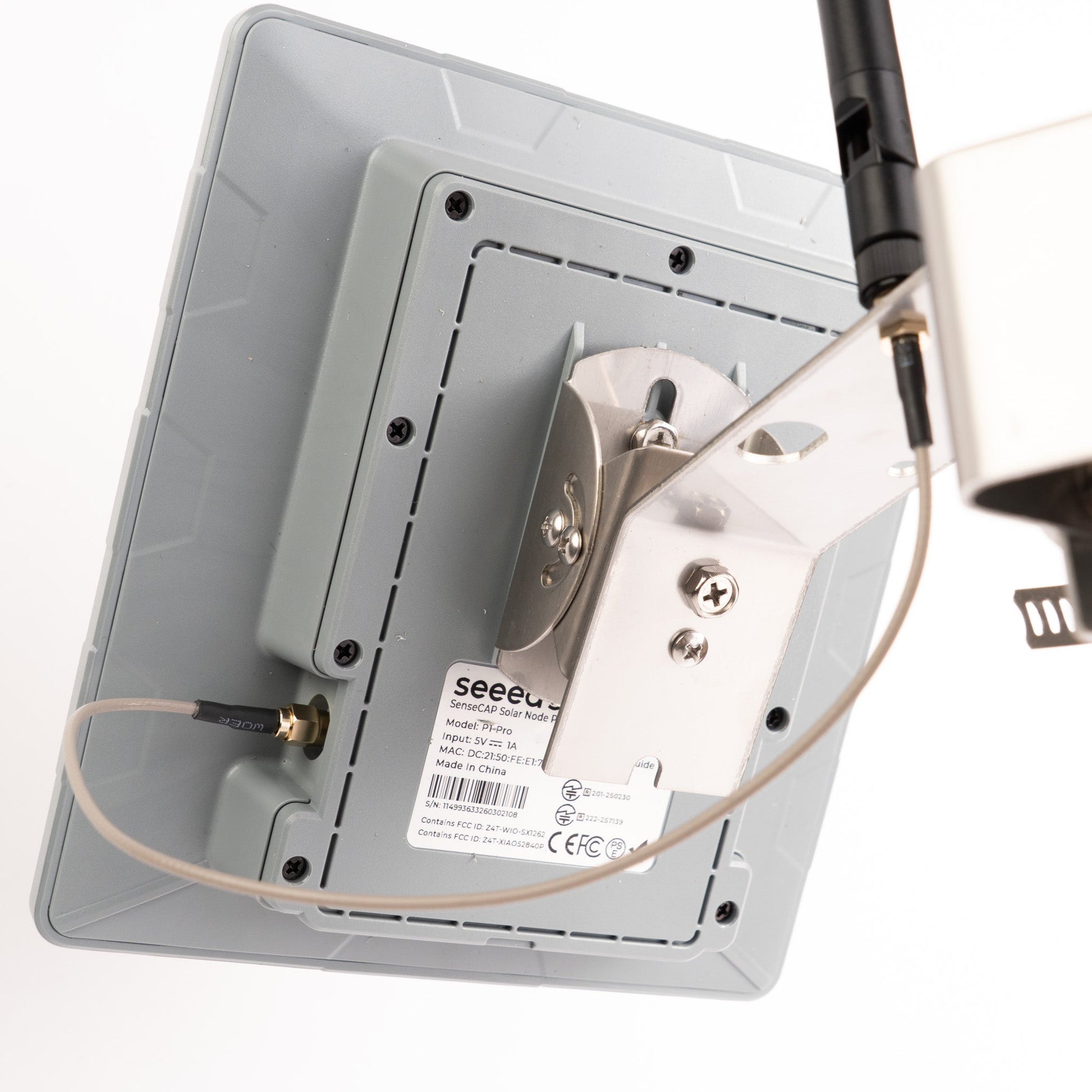

• ✅ Outdoor Rated — includes pole and wall mounting brackets

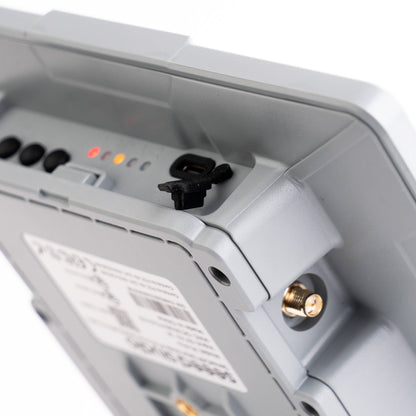

• ✅ USB-C Charging — Charge via solar or USB-C when not deployed
• ✅ FCC & CE Certified

Specifications

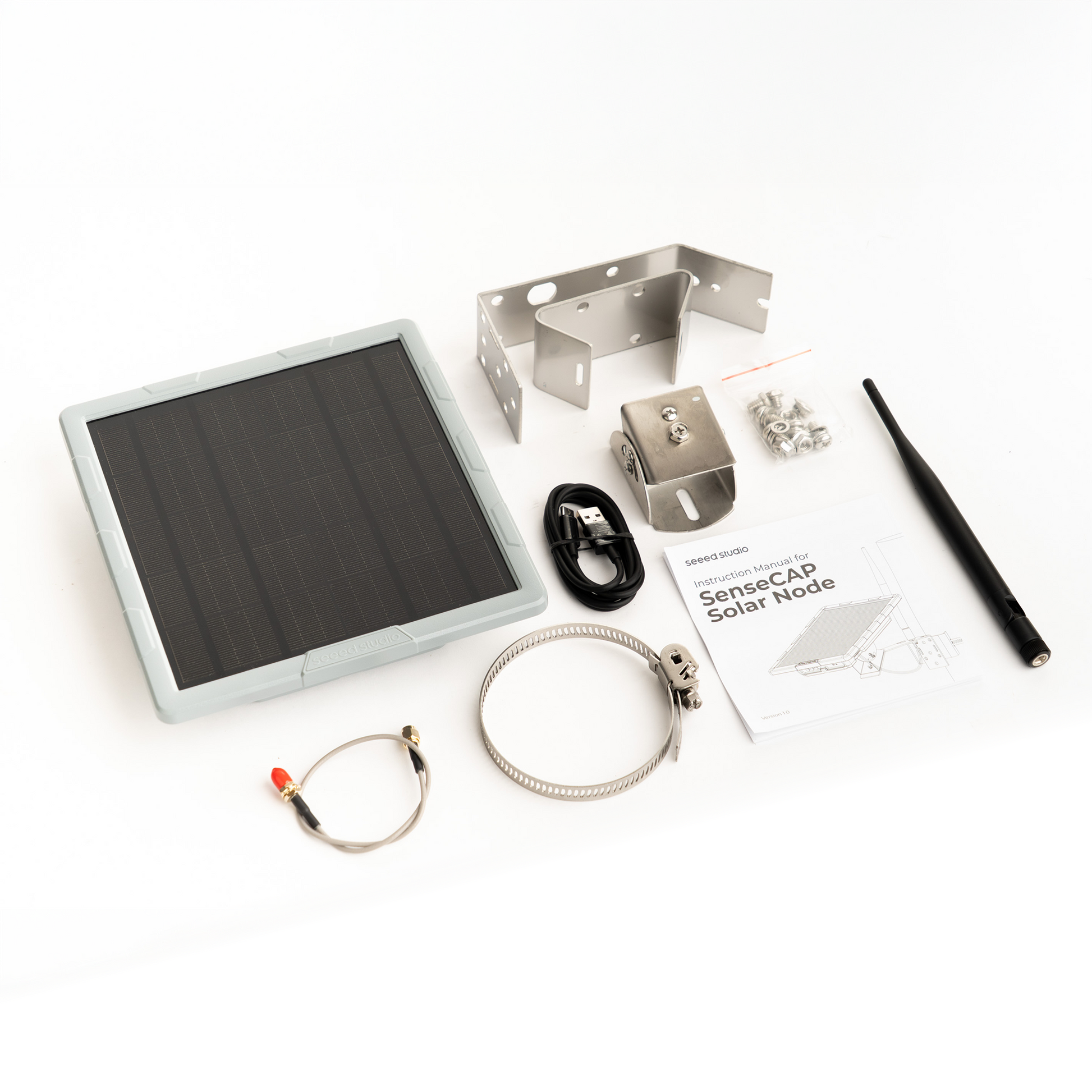

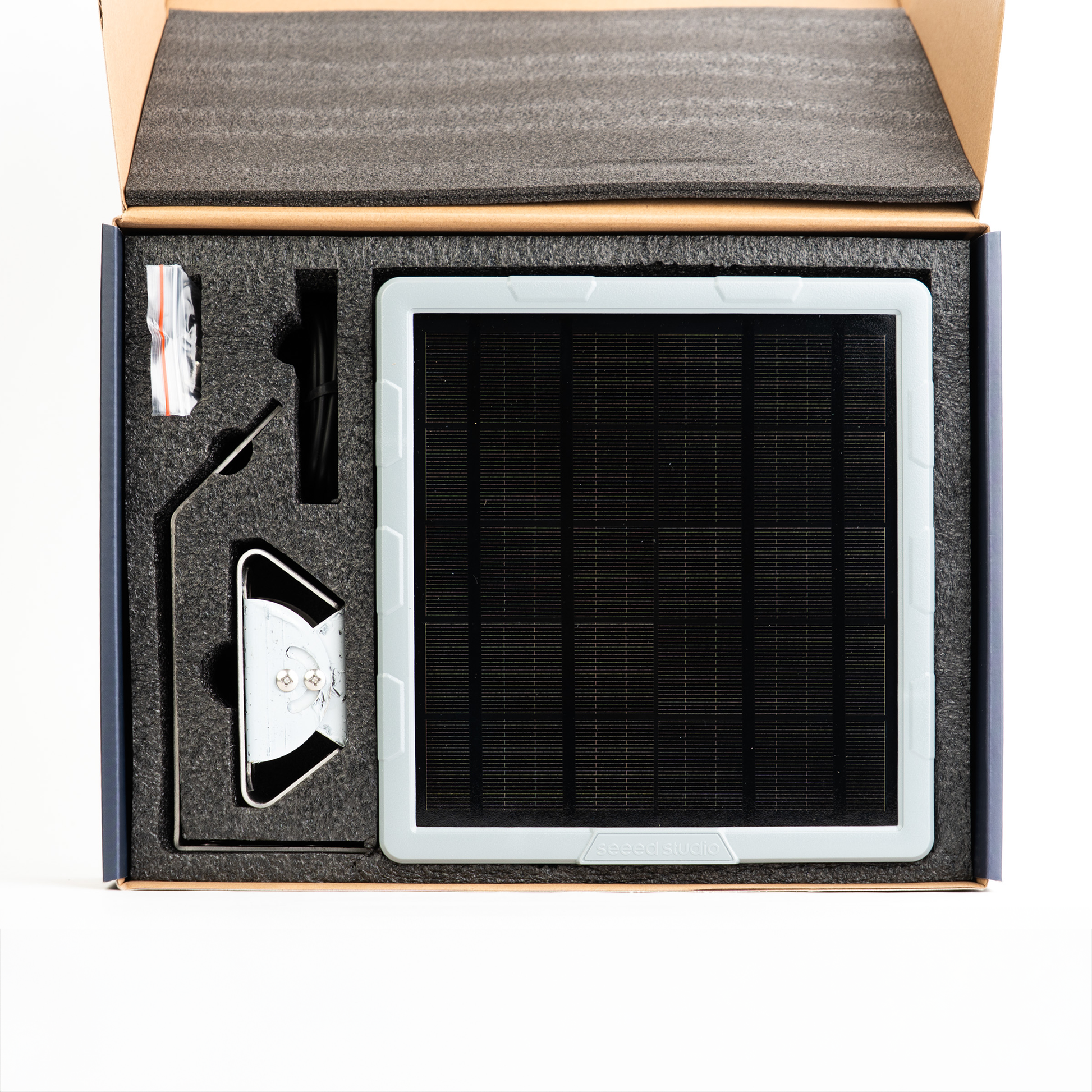

What's in the Box

• SenseCAP Solar Node P1-Pro

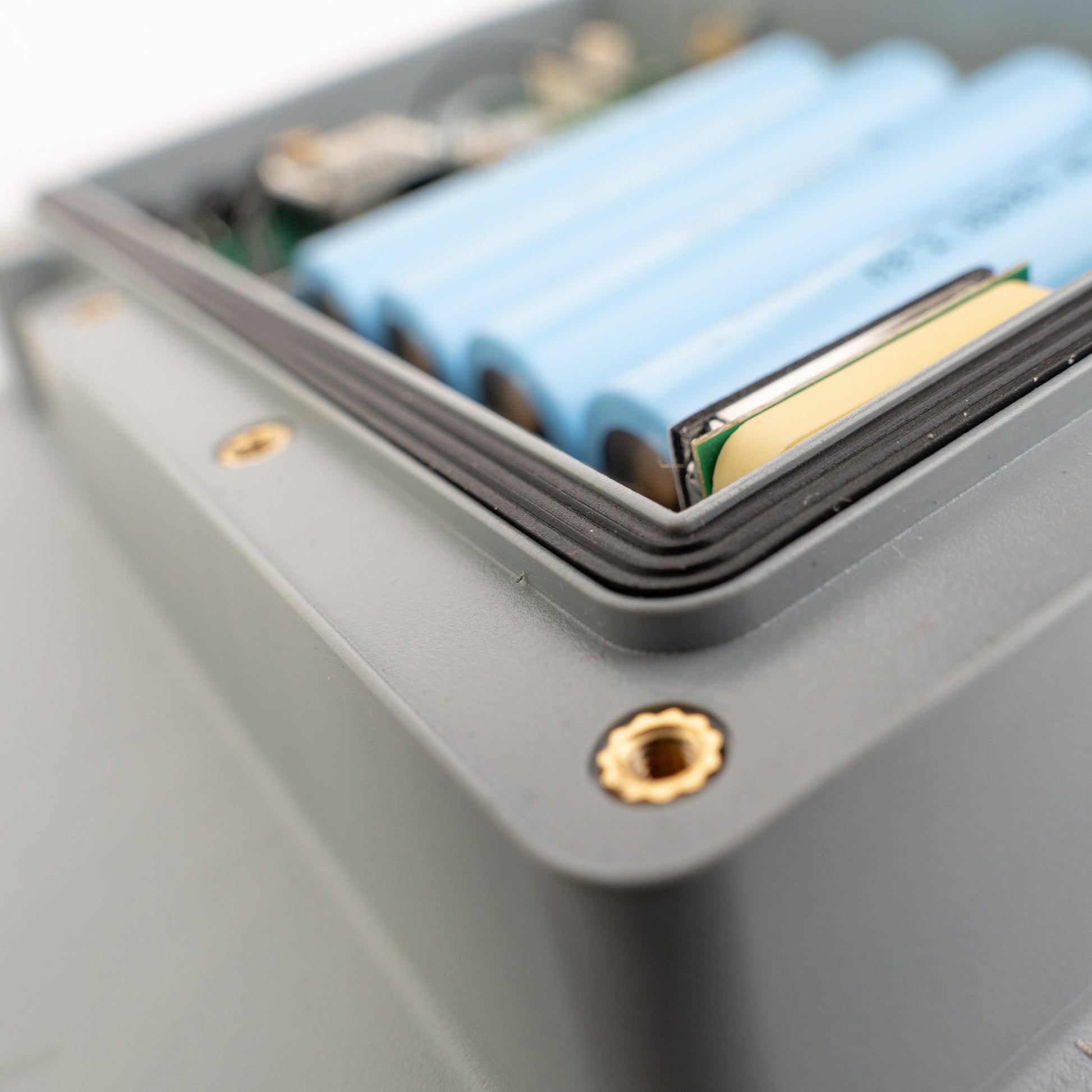

• 4× 18650 batteries (pre-installed)
• RP-SMA antenna of your choice
• Antenna cable (RP-SMA Male to RF-SMA Female)

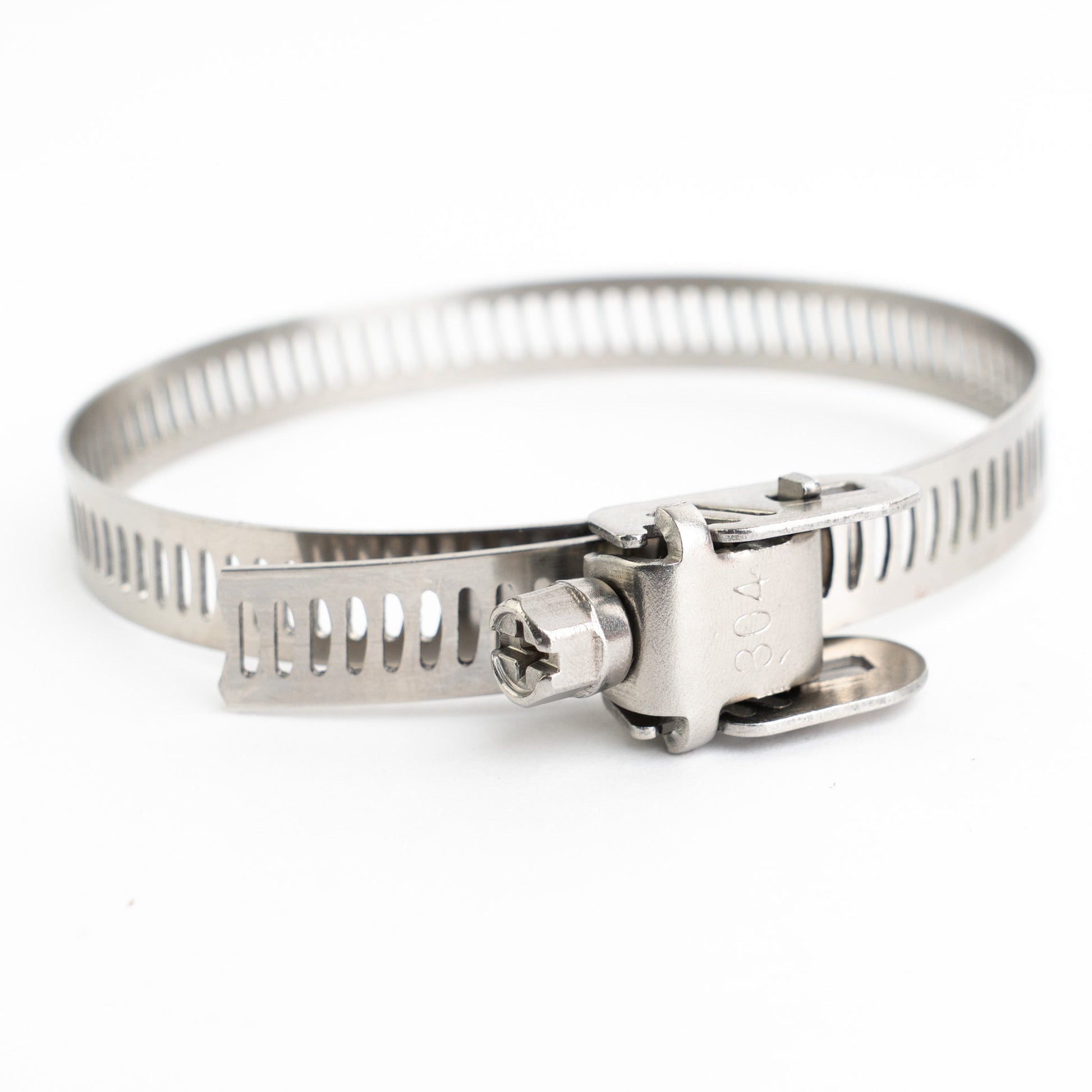

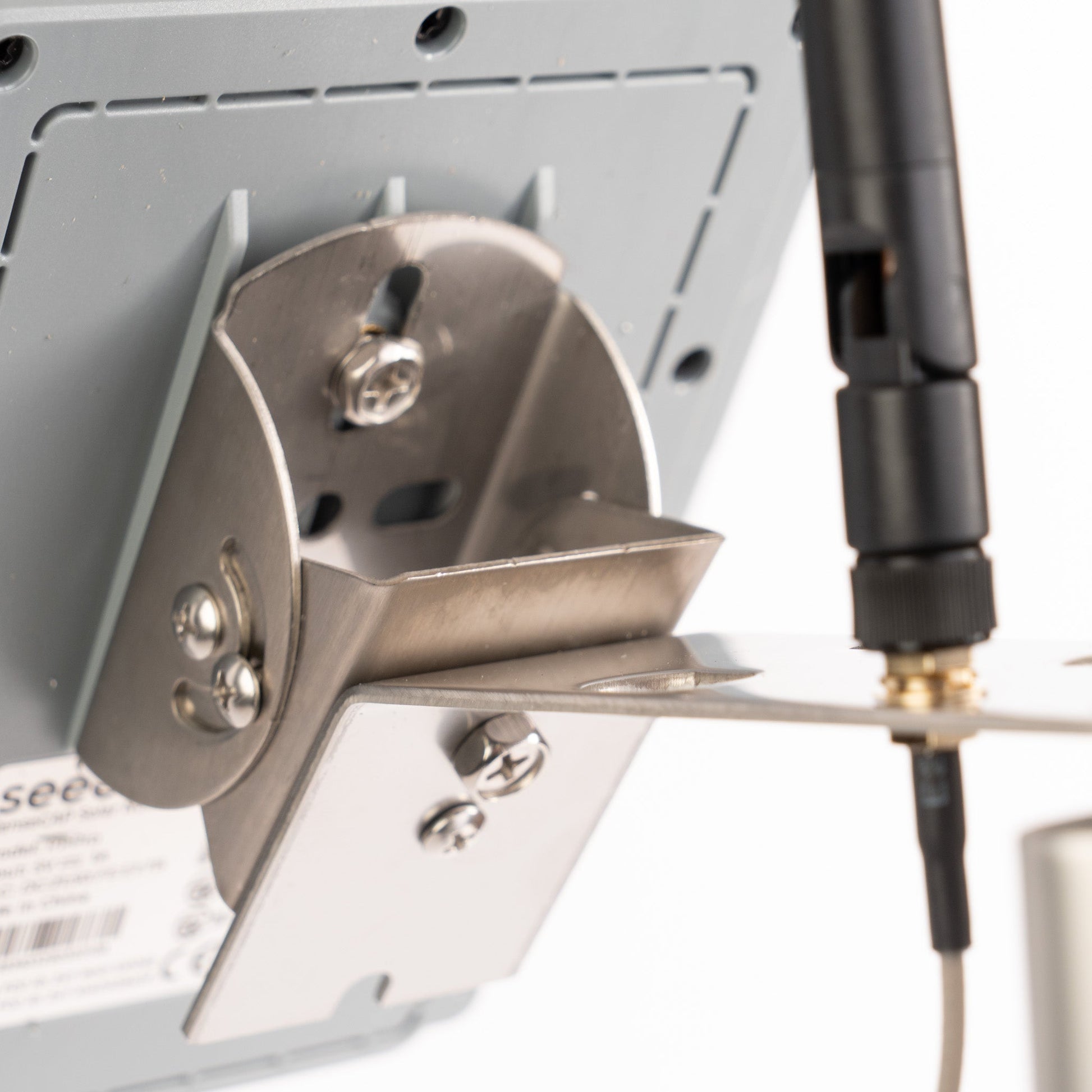

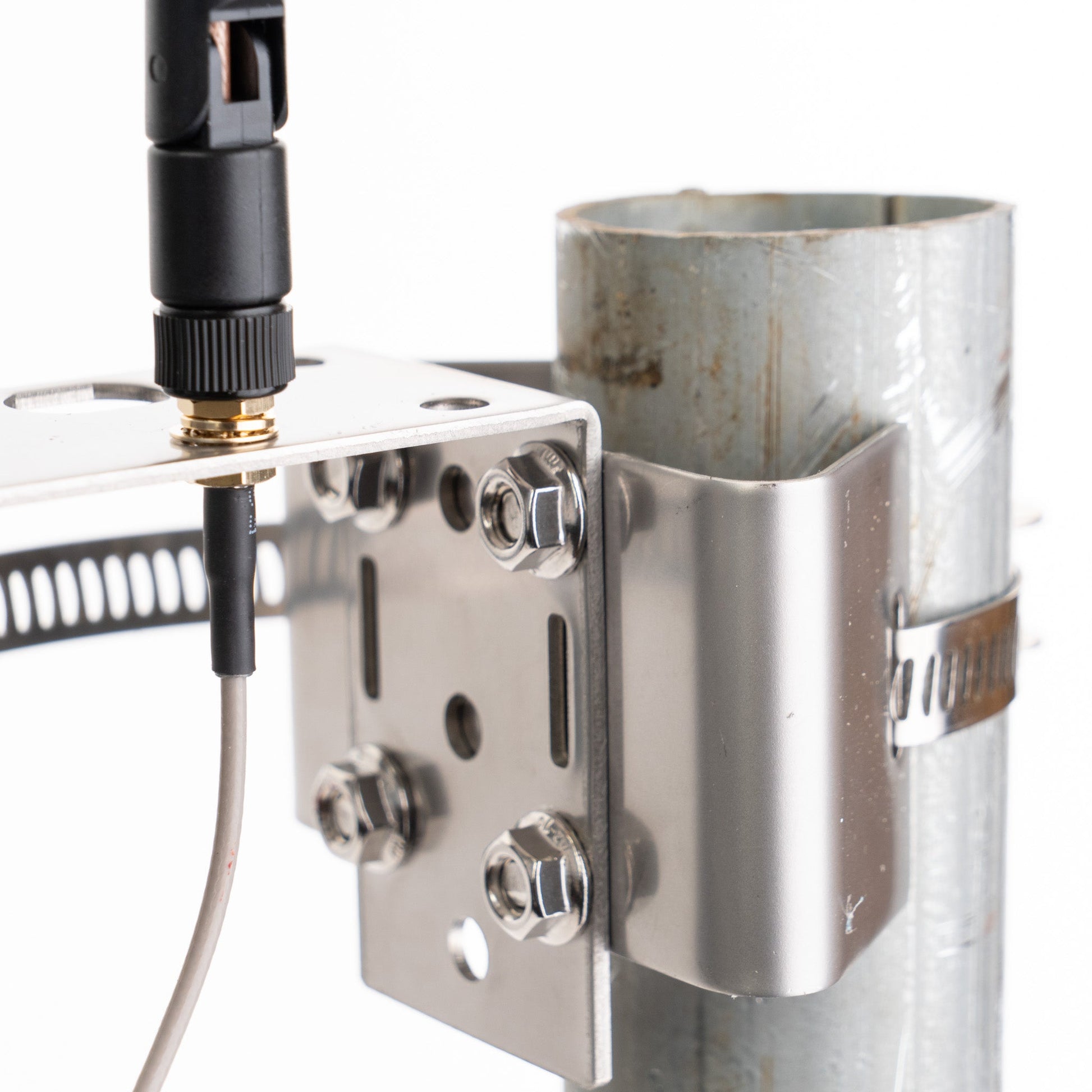

• Mounting brackets and hardware (pole + wall mount)
• USB-C cable

Use Cases

• Mesh Network Expansion — Deploy as a solar repeater to fill coverage gaps and relay messages between nodes
• Off-Grid Communication — Text and GPS in areas with no cell service
• Outdoor Tracking — Real-time GPS positioning for remote operations, farms, parks, trails
• Environmental Monitoring — Connect Grove sensors for temperature, humidity, and air quality data
• Emergency Preparedness — Set-and-forget solar node for resilient off-grid comms

Notes

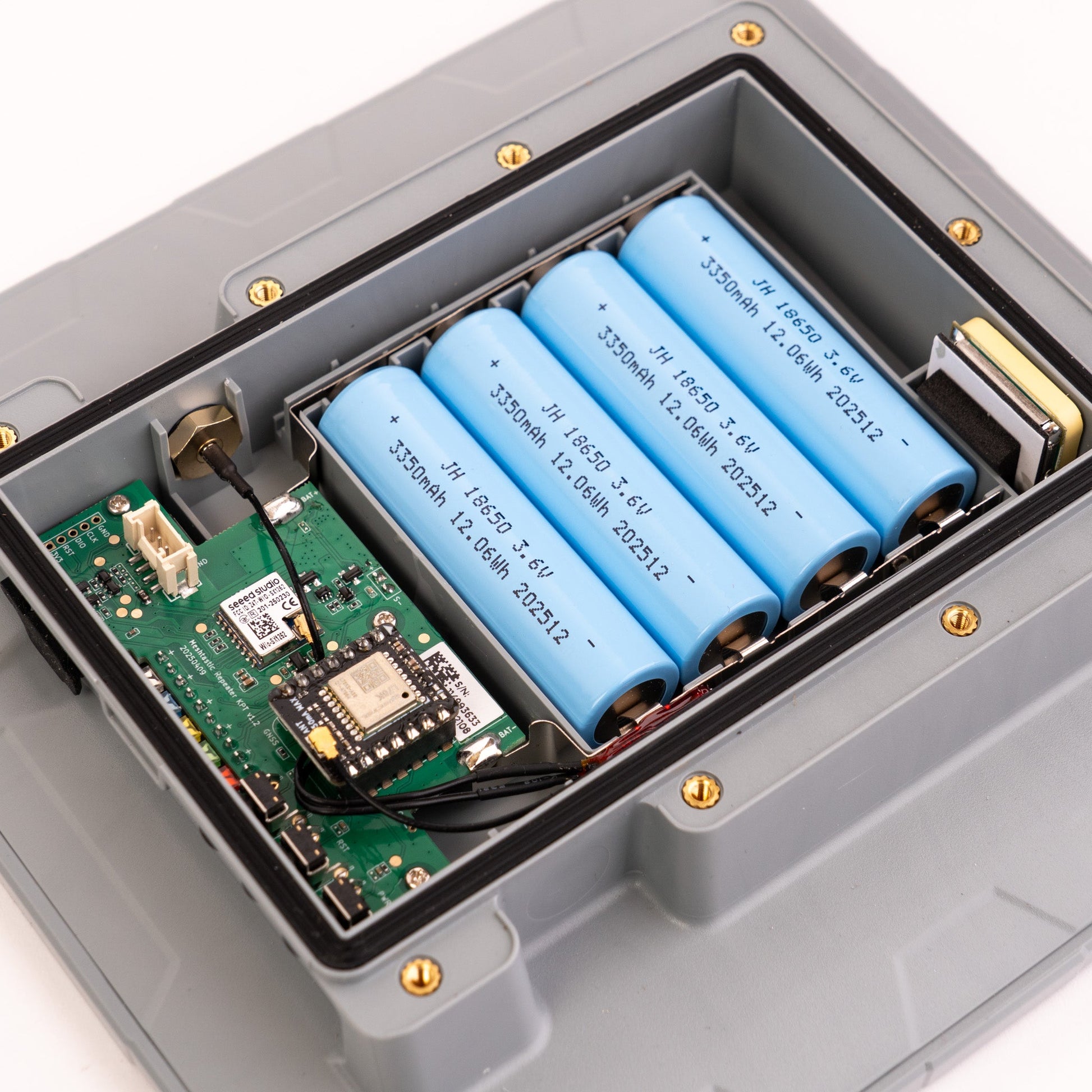

• Batteries are button-top 18650 (3.6V). If replacing, use button-top only.
• For best GPS performance, mount with a clear view of the sky.
• Clean the solar panel periodically for maximum charging efficiency.
